Crystal Buddha 3D Scanning Tailored Mahogany Base-Crafts 3D Display

The production process of the crystal industry is very complicated. The processes include cutting, embossing, rough polishing, fine polishing, punching, carving, sandblasting, viscose, quality inspection, packaging, faceting, plane, facet plus plane and hand engraving .

Problems to be solved

Obtain the 3D data of the crystal as a whole. There are various sizes of crystal Buddha statues. Using traditional measuring tools, many curved surfaces cannot be measured, which cannot meet the needs of customers.

It is necessary to customize the base of the crystal Buddha. The size rules and shapes of the crystal Buddha are different. It is necessary to customize a reasonable and beautiful mahogany base for each crystal Buddha.

Crystal Buddha 3D Scanning Tailored Mahogany Base-Handicraft 3D Display Solution

1. After pre-communication, the customer brought the crystal Buddha statue to Jingyixun Technology. The crystal Buddha statue was displayed on the workbench. The customer and the technical engineer communicated simply. The technical engineer used a photographic three-dimensional scanner (PTS- E)

2. Start the preparation work. If the crystal is transparent, the surface must be treated first. The surface treatment will not cause any damage to the crystal Buddha statue.

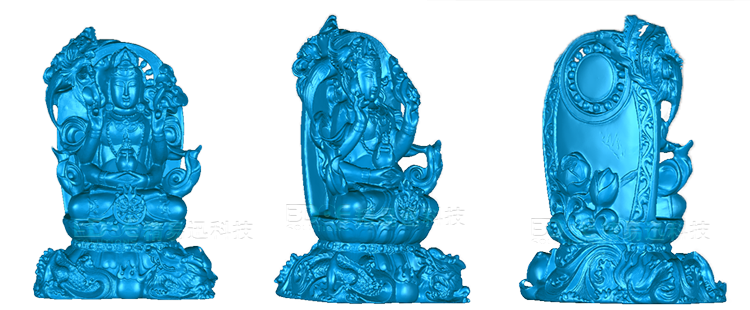

3. The technical engineer uses a camera-type 3D scanner to scan the crystal Buddha statue to quickly obtain the 3D data of the crystal Buddha statue. It took about 10 minutes to obtain the overall data of the crystal Buddha statue. satisfaction.

summary

The camera-type 3D scanner (PTS-E) has an accuracy of 0.015mm, which can effectively obtain every detail of the crystal Buddha statue, scan the crystal Buddha statue in three dimensions, quickly complete the acquisition of the 3D scanning data of the crystal Buddha statue, and then design the mahogany for the crystal Buddha statue The base, the three-dimensional data of the crystal Buddha statue can also be used for 3D display.

Application expansion

Using the precise stl data of the crystal buddha statue to establish a highly reducible digital model, it can realize 3D digital engraving, 3D printing, mold opening, and 3D digital display. Photographic three-dimensional scanner (PTS-E) is mainly suitable for scanning fine objects and small and medium-sized objects, and is widely used in high-precision industries such as wood carving, jade carving, and jewelry.
