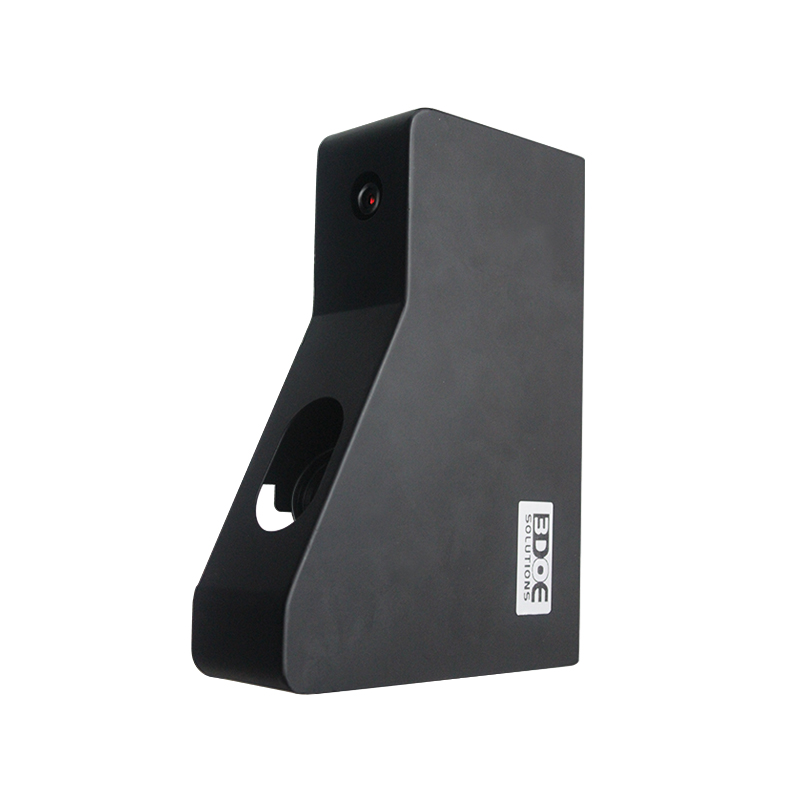

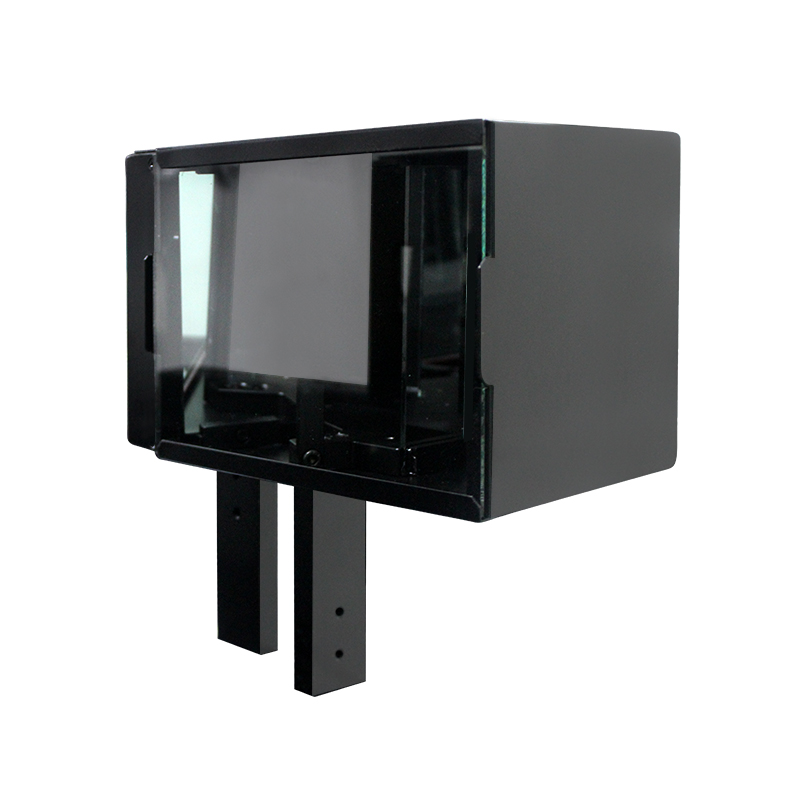

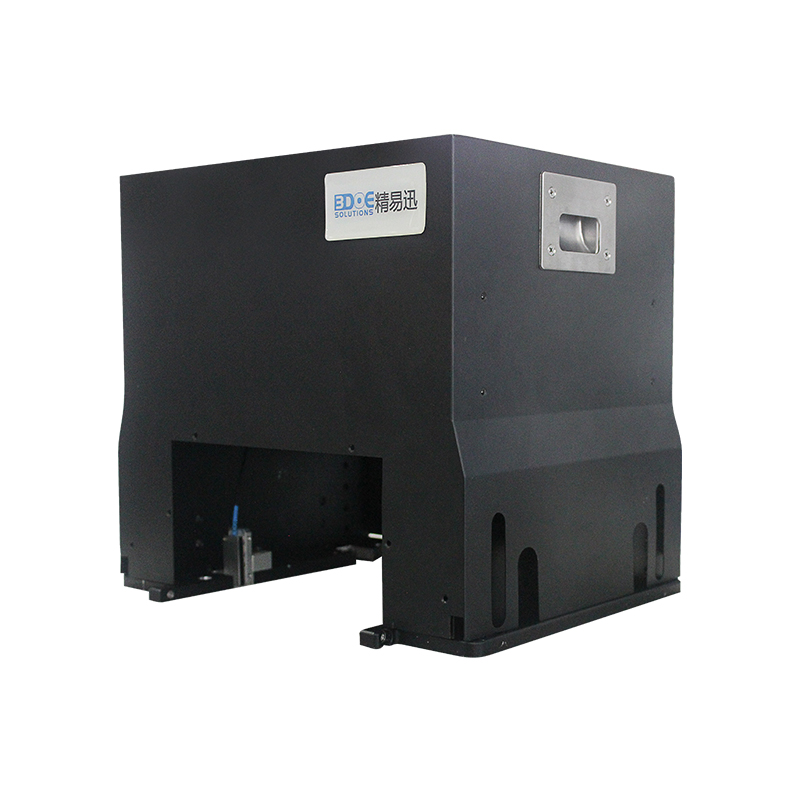

LM series 3D laser measuring head

所属分类:

产品型号:LM series

The 3D laser scanning head launched by 3DOE can collect millions of precise point data on any type of object surface, from matte black surface to highly reflective surface, even carbon fiber surface, without any special pretreatment, it is advanced, Widely applicable non-contact 3D laser scanning core equipment. It has the characteristics of wide applicability, large scanning range, high precision, fast speed and high cost performance.

0755-86131192

产品介绍经典案例技术参数应用领域联系我们

The LM series 3D laser scanning head launched by 3DOE can collect millions of precise point data on the surface of any type of object, from matte black surface to highly reflective surface, even carbon fiber surface, without any special pretreatment, it is advanced The most widely applicable non-contact 3D laser scanning core equipment. It has the characteristics of wide applicability, large scanning range, high precision, fast speed and high cost performance.


1. Non-contact laser scanning: Avoid contact with the surface of the object, and can scan the surface of any type of object without pretreatment;

2. High measurement accuracy: high-precision laser scanning light source, with an accuracy of up to 0.05mm;

3. Fast scanning speed: the system can digitize tens of thousands of contour points per second, quickly and accurately obtain the complex three-dimensional data space of the measured object;

4. Simple operation: one-button automatic scanning mode, any object scanning without marking points;

5. Automatic splicing: no manual splicing required;

6. Flexible operation: the entire system supports multiple scans, and the fineness of the scan is adjustable, so that the overall shape can be quickly obtained, and the parts can be finely scanned;

7. Open interface: standard file interface, scanning software directly supports multiple data format files such as IGS, ASC, DXF, OBG, STL, WRL, VRML.

8. Wide applicability: It adopts advanced optical system design, strong anti-interference ability of ambient light, and can scan dark objects without pre-processing the objects. The measurement results can be output to CAD software in a variety of common file formats to generate digital models, and can be output to CAM software to generate cnc processing codes, helping users to achieve rapid copying and processing. It can be output to post-processing software to realize 3D model checking, product quality control, 3D measurement and other functions.

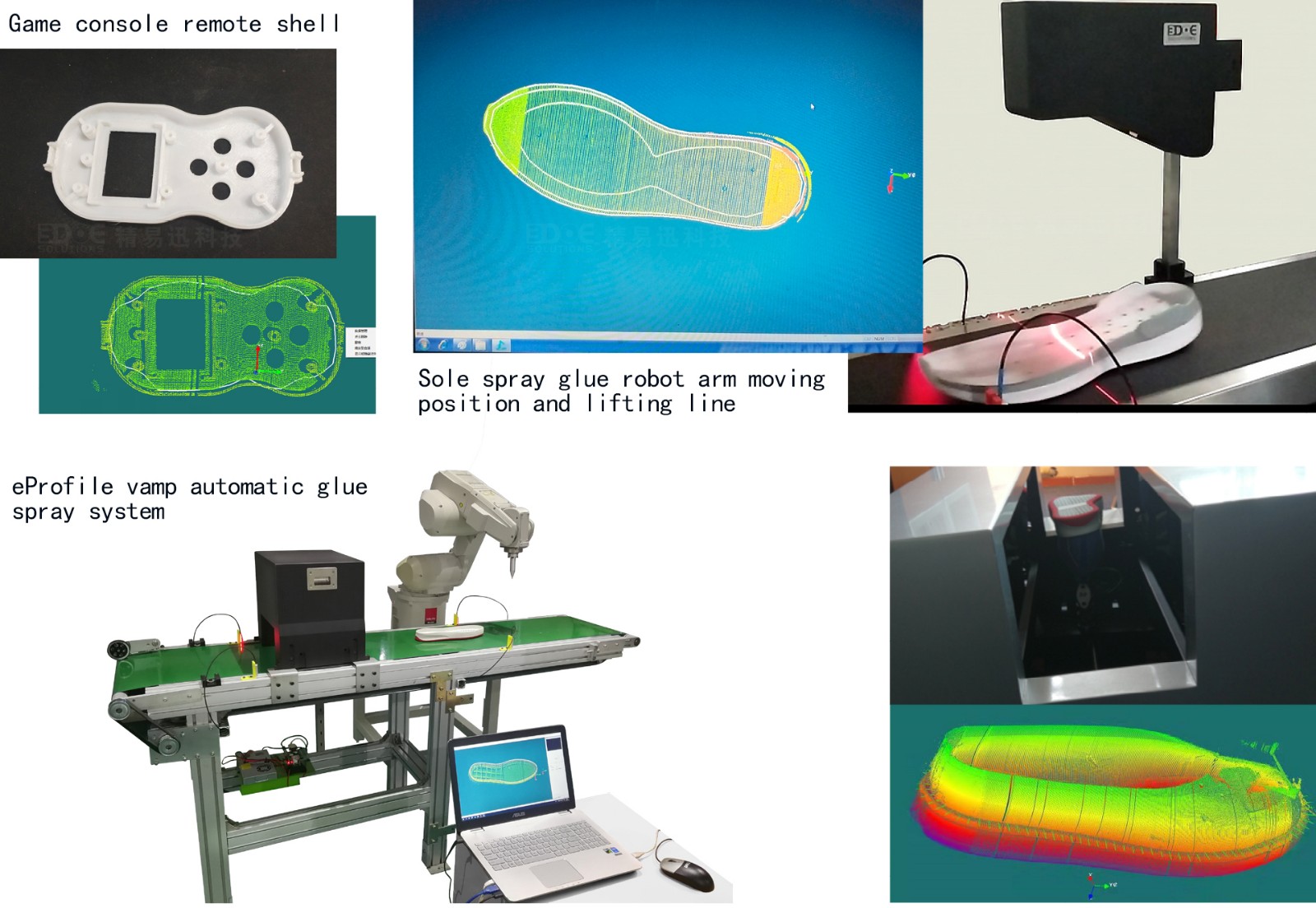

▣  Classic cases


▣  Technical Parameters

model

LMV1

LMV2

LMV4

LMV6

LMV8

X measuring range (mm)

180

180

180

180

180

Z measuring range (mm)

60

100

120

120

120

X-axis contour points

1280-4096

2560

5120

7680

10240

Scanning speed (fps)

100-600

210fps

210

210

210

Repeatability (mm)

0.01-0.05

0.02-0.05

0.05

0.05

0.05

Output Data

3D point cloud data, automatic fusion of multi-view data, extraction of relevant contour lines and robot trajectory posture information

I/O interface

3 programmable input interfaces, 3 programmable output interfaces


▣  Application field

☆ 3D visual positioning        ☆ 3D defect detection       ☆ Robot guidance, automated application

☆ Face measurement            ☆ Digital application         ☆ 3D vision related


To understand the specific application, please feel free to consult online (message) or

call 0755-86131192!

Provide system customized solutions!
