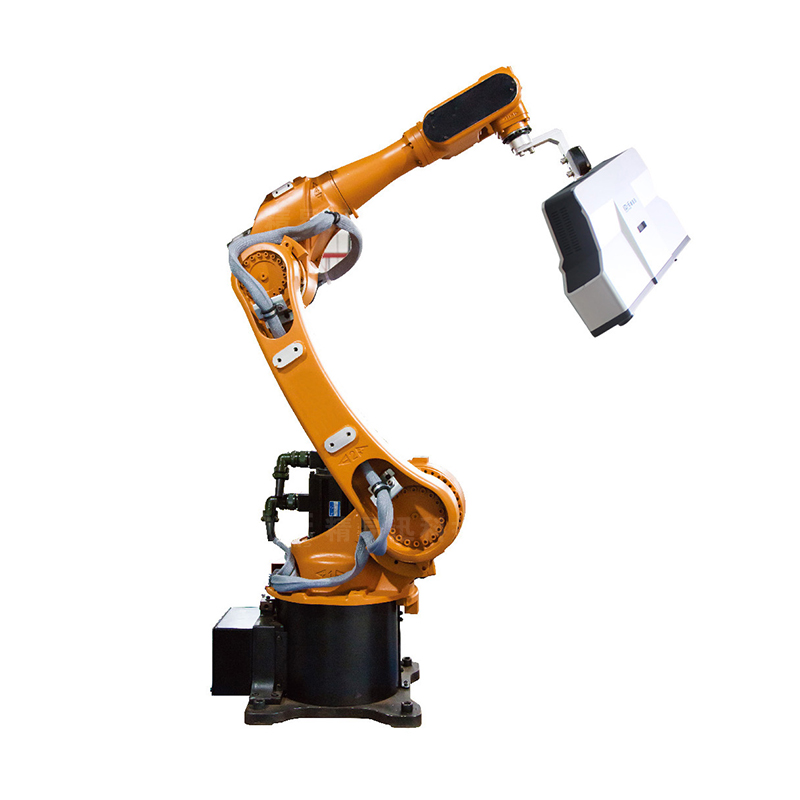

PM series surface light 3D measuring head adopts advanced blue light raster scanning technology, equipped with the company's independently developed control chip and high-precision industrial camera, which can meet various high-precision three-dimensional measurement needs. The camera resolution is available from 1.3-9 million pixels.
PM series surface light 3D measuring head adopts advanced blue light raster scanning technology, equipped with the company's independently developed control chip and high-precision industrial camera, which can meet various high-precision three-dimensional measurement needs. Provide a fast, effective and reliable effective solution for collecting three-dimensional contour data of objects. The camera resolution is available from 1.3-9 million pixels. It can be used for industrial visual inspection, such as inspecting 3D features of parts, including contour and shape, height, curvature, aperture, etc.
▣ Technical Parameters
Product number | PM series |
scanning method | Non-contact blue/white light scanning |
Single scan range (mm2) | 100X75~800X600 adjustable |
Measuring accuracy (mm) | 0.005~0.05 |
Single scan points (pixels) | 1.3 million-9 million |
Single scan speed (S) | < 1.5 |
Average dot pitch (mm) | 0.02 ~ 0. 6 |
Output Data | 3D point cloud data, automatic fusion of multi-view data |
I/O interface | 3 programmable input interfaces, 3 programmable output interfaces |
To understand the specific application of 3D measuring head, blue light raster scanning, high-precision three-dimensional measurement, please contact online (leave a message) or call 0755-86131192!
Provide system customized solutions!
