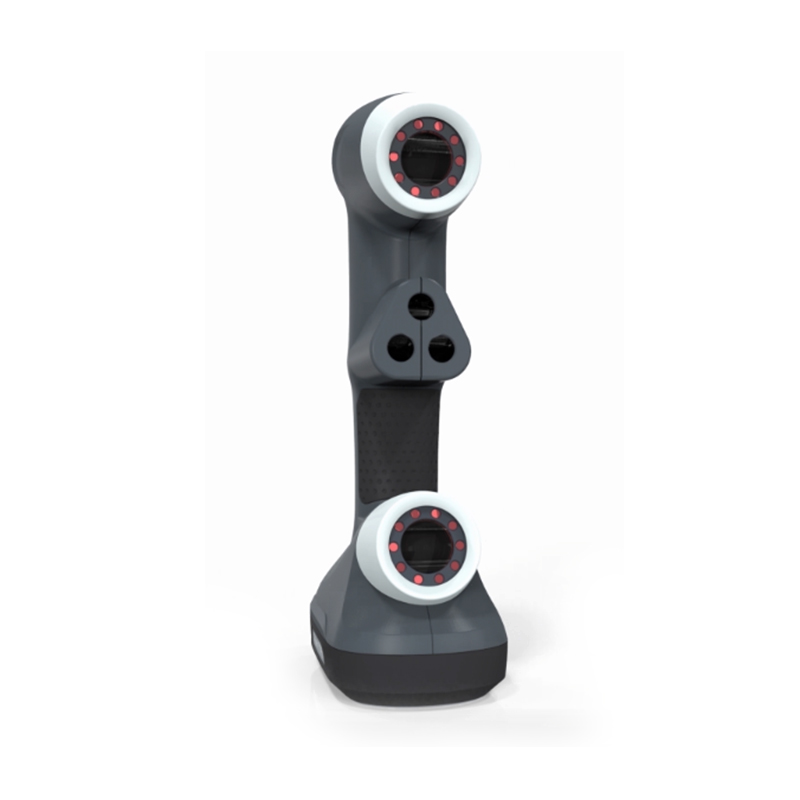

eSharp P7 handheld 3D scanner (red light)

所属分类:

产品型号:eSharp P7

The eSharp P7 handheld laser 3D scanner uses a red laser light source and 14+1 scanning laser lines, which can quickly obtain 3D data on the surface of an object, and can scan black and bright objects with high accuracy and efficiency with high compatibility. It has a wide range of applications, such as quality 3D detection and control, reverse design, 3D digital display, medical and health, 3D printing, education and scientific research. The operation is simple and flexible, suitable for various complex application scenarios.

0755-86131192

产品介绍经典案例技术参数应用领域联系我们

The eSharp P7 handheld laser 3D scanner uses 14+1 red scanning laser lines, which can quickly obtain 3D data on the surface of an object, and with high compatibility, it can scan black and bright objects with high precision and efficiency. It has a wide range of applications, such as quality 3D detection and control, reverse design, 3D digital display, medical and health, 3D printing, education and scientific research. The operation is simple and flexible, suitable for various complex application scenarios.


Features

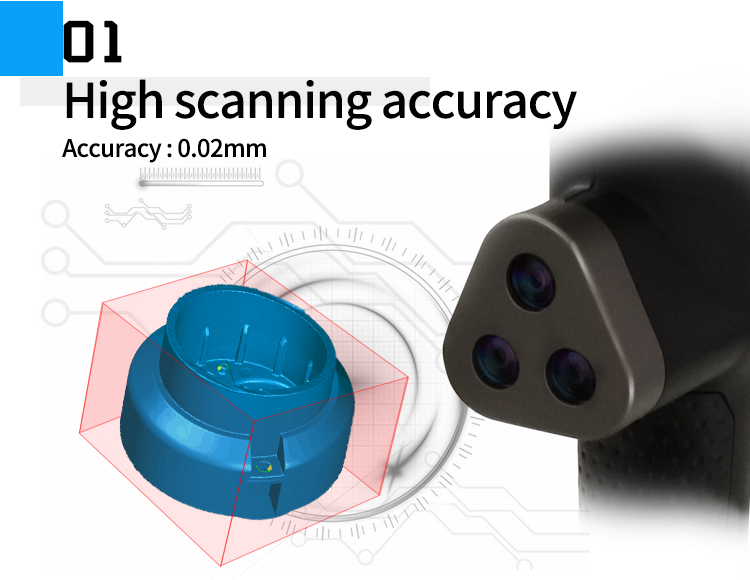

1. Industrial grade accuracy: volume accuracy up to 0.02+0.06mm/m

2. Simple operation (visual operation): The equipment is simple to operate, easy to learn and use, real-time visualization, and users can see the situation and corresponding location of the scanned workpiece through the computer.

3. Fast scanning speed: 14 scanning laser lines + 1 fine scanning laser line, scanning speed up to 480,000 measurements/sec, using an efficient and stable USB3.0 interface to achieve a very high rate of data transmission


▣  Classic cases

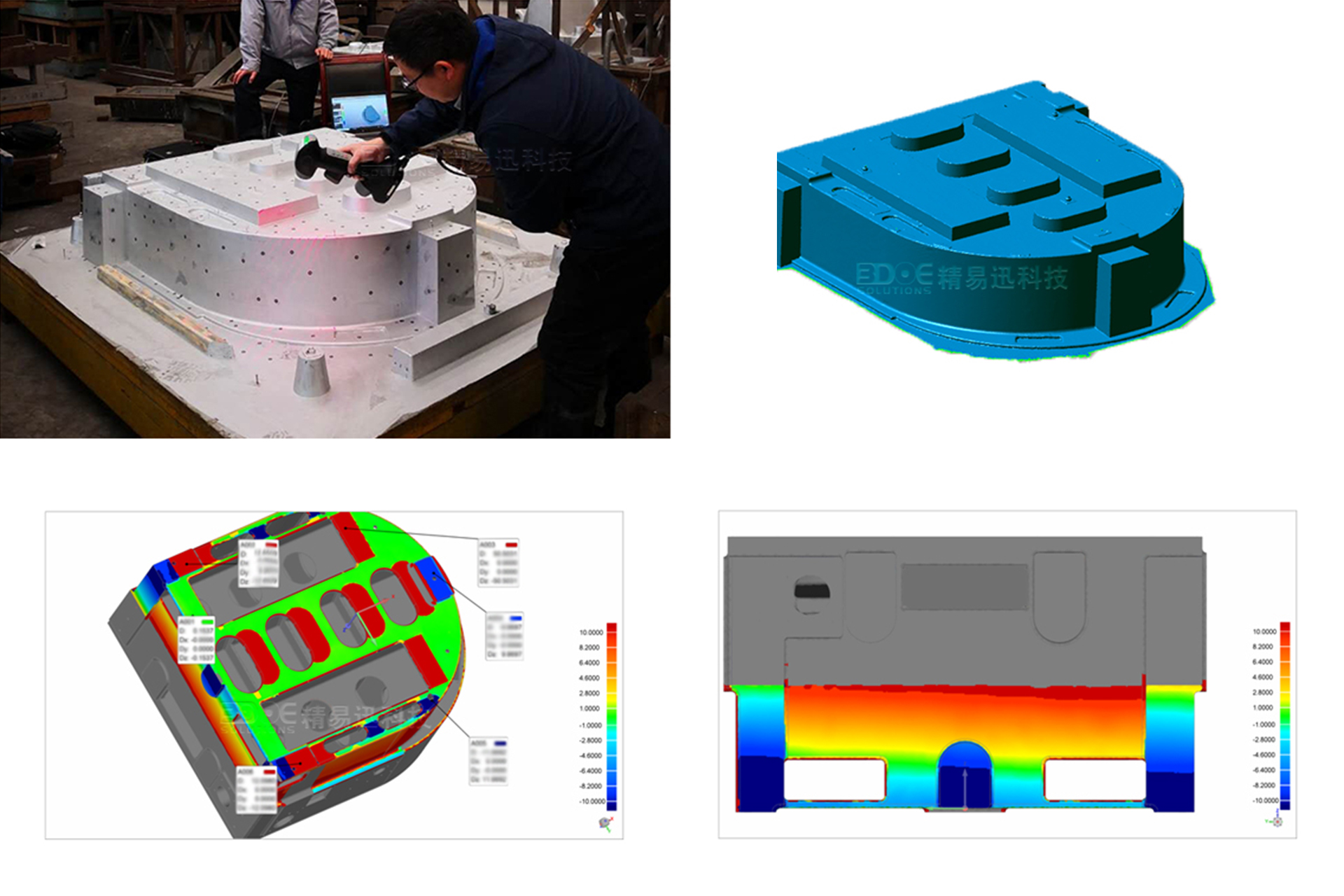

Three-dimensional scanning inspection of large castings


▣  Technical Parameters


Product Model

eSharp-P series

eSharp-P7

eSharp-P3

Measuring speed

480,000 measurements/sec

205,000 measurements/sec

light source

Laser 14+1 beam

Laser 6+1 beam

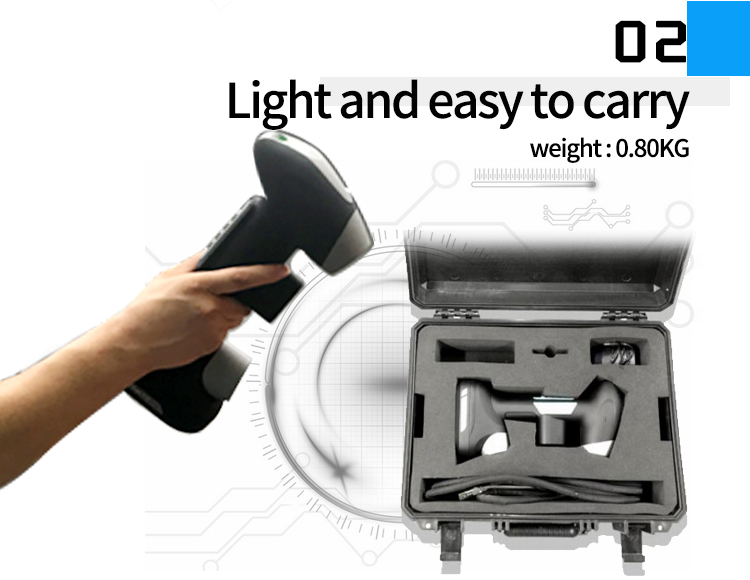

weight

0.80kg

Size(mm)

310×147×80

Scanning area(mm)

275x250

Measuring accuracy(mm)

Up to 0.02

Volume accuracy(mm/m)

0.03+0.06


Volume accuracy (mm/m)

(Combined with 3D photogrammetry system)

0.03+0.025

Laser category

ClassII eye safety level

Resolution(mm

Up to 0.05

Depth of field(mm

250 (automatic)

Working distance(mm

300

transfer method

USB3.0

Working temperature (Celsius)

-20~40

Working humidity (non-condensing)

10~90%

Data output format

.stl, .obj, .asc, .ply, .txt, .xyz, etc., can be customized.

Compatible software

3D Systems(Geomagic Solutions),InnovMetric Softwre(PolyWorks)

Dassault Systems(CATIV V5 and SolidWorks),PTC(PRO/ENGINEER)

Autodesk(inventor、Alias、3ds max、Maya、Softimage),Siemens(NX and Solid Edge)

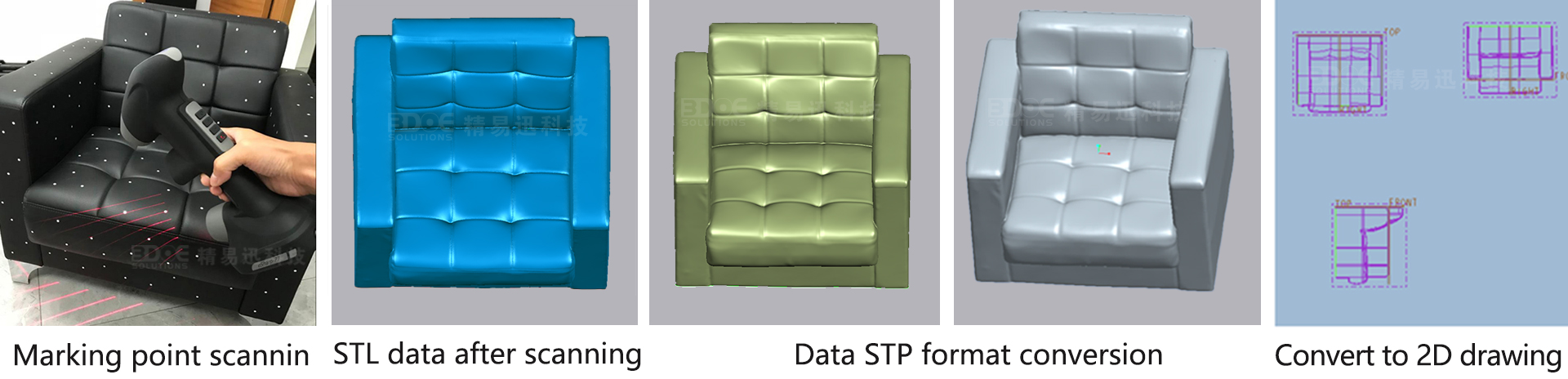

▣  Application fieldIt can scan all kinds of objects of different sizes and multiple types of surface colors, and automatically complete data modeling and other applications, truly achieving multiple uses in one machine.

Automobile transportation: Mold manufacturing: Consumer products:

1. Reverse design engineering      1. Proposed assembly      1. Product modeling and design


2. Competitive product analysis      2. Reverse design engineering      2. Reverse design


3. Car modification      3. Quality control and three-dimensional inspection      3. Quality control/inspection


4. Interior and exterior decoration customization      4. Wear analysis and maintenance      4. Packaging and advertising


5. Quality control and parts measurement (three-dimensional inspection)


6. Simulation and Finite Element Analysis (FEA)



To understand the specific application, please feel free to consult online (message) or

call 0755-86131192!

Provide system customized solutions!



▣  Classic cases

Three-dimensional scanning inspection of large castings


▣  Technical Parameters


Product Model

eSharp-P series

eSharp-P7

eSharp-P3

Measuring speed

480,000 measurements/sec

205,000 measurements/sec

light source

Laser 14+1 beam

Laser 6+1 beam

weight

0.80kg

Size(mm)

310×147×80

Scanning area(mm)

275x250

Measuring accuracy(mm)

Up to 0.02

Volume accuracy(mm/m)

0.03+0.06


Volume accuracy (mm/m)

(Combined with 3D photogrammetry system)

0.03+0.025

Laser category

ClassII eye safety level

Resolution(mm

Up to 0.05

Depth of field(mm

250 (automatic)

Working distance(mm

300

transfer method

USB3.0

Working temperature (Celsius)

-20~40

Working humidity (non-condensing)

10~90%

Data output format

.stl, .obj, .asc, .ply, .txt, .xyz, etc., can be customized.

Compatible software

3D Systems(Geomagic Solutions),InnovMetric Softwre(PolyWorks)

Dassault Systems(CATIV V5 and SolidWorks),PTC(PRO/ENGINEER)

Autodesk(inventor、Alias、3ds max、Maya、Softimage),Siemens(NX and Solid Edge)



▣  Application fieldIt can scan all kinds of objects of different sizes and multiple types of surface colors, and automatically complete data modeling and other applications, truly achieving multiple uses in one machine.

Automobile transportation: Mold manufacturing: Consumer products:

1. Reverse design engineering      1. Proposed assembly      1. Product modeling and design


2. Competitive product analysis      2. Reverse design engineering      2. Reverse design


3. Car modification      3. Quality control and three-dimensional inspection      3. Quality control/inspection


4. Interior and exterior decoration customization      4. Wear analysis and maintenance      4. Packaging and advertising


5. Quality control and parts measurement (three-dimensional inspection)


6. Simulation and Finite Element Analysis (FEA)



To understand the specific application, please feel free to consult online (message) or

call 0755-86131192!

Provide system customized solutions!
